:high_voltage: 4–20 mA — The Most Important Signal in Instrumentation

Even in modern digital plants, one signal still dominates industrial automation :backhand_index_pointing_down:

:backhand_index_pointing_right: 4–20 mA

Simple. Reliable. Industry standard.

:gear: What is 4–20 mA?

:right_arrow: An analog current signal used to transmit process values

Examples:
:thermometer: Temperature
:oil_drum: Level
:high_voltage: Pressure
:dashing_away: Flow

:brain: Why 4 mA to 20 mA?

:small_blue_diamond: 4 mA = Live Zero
:small_blue_diamond: 20 mA = Full Scale

:backhand_index_pointing_right: 0 mA means:
:police_car_light: Wire break / fault detection

That’s the genius of 4–20 mA.

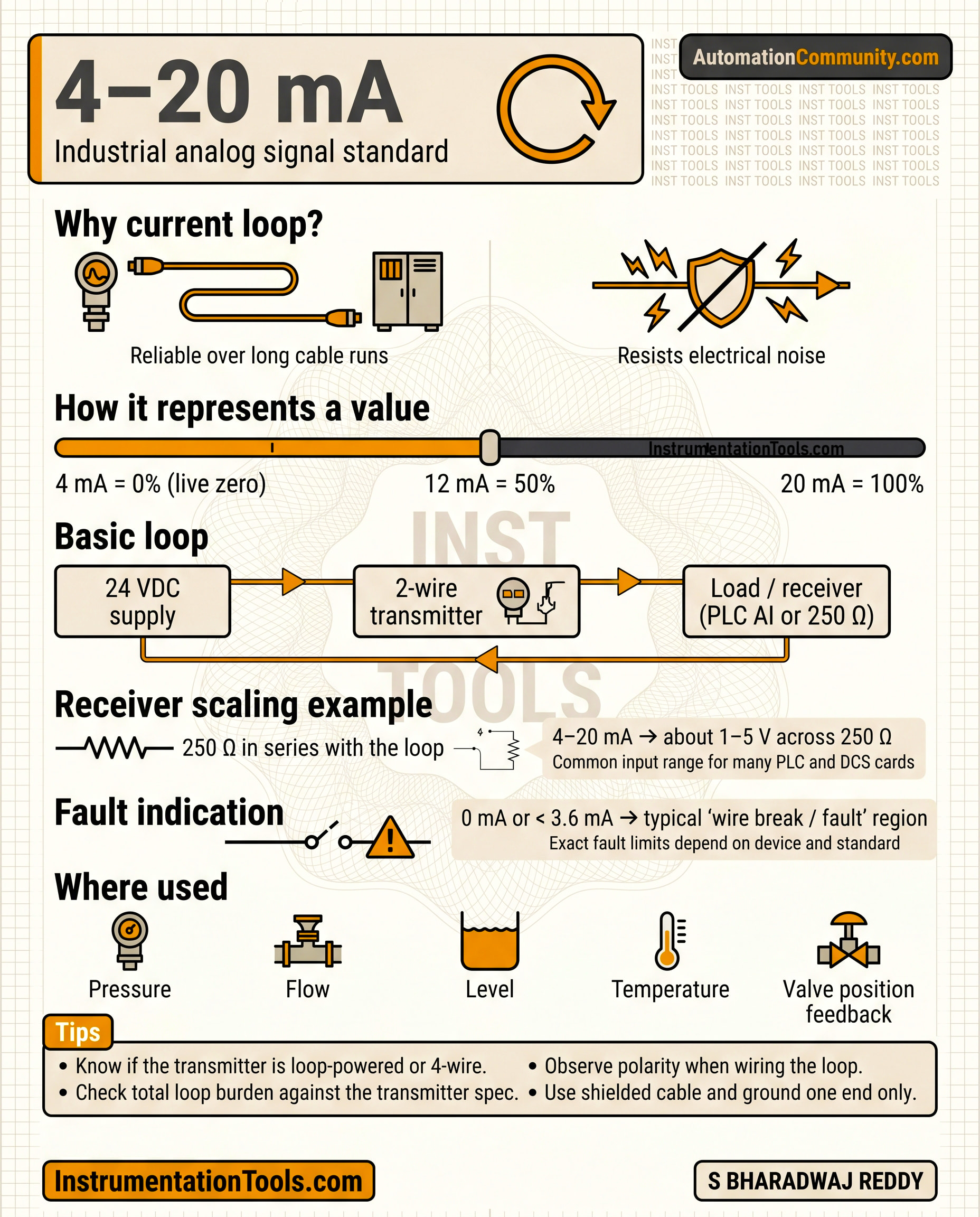

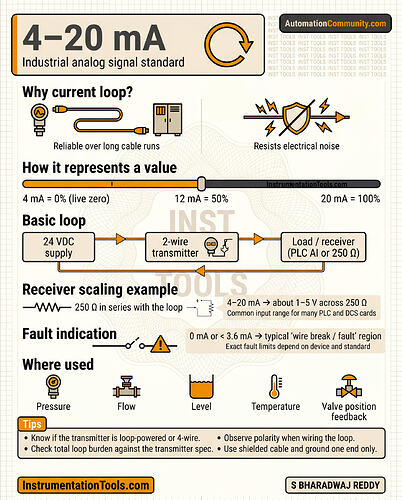

4-20 mA
4-20 mA1856×2304 869 KB

:rocket: Why industry still uses it

:high_voltage: Excellent noise immunity
:high_voltage: Long-distance transmission
:high_voltage: Simple & reliable
:high_voltage: Easy troubleshooting

:factory: How it works

:satellite_antenna: Transmitter measures process value
:down_arrow:
:high_voltage: Converts it into 4–20 mA signal
:down_arrow:
:desktop_computer: PLC / DCS reads the value

:bar_chart: Example

Tank Level Range = 0–100%

:small_blue_diamond: 4 mA → 0%
:small_blue_diamond: 12 mA → 50%
:small_blue_diamond: 20 mA → 100%

:warning: Common mistakes

:cross_mark: Confusing current loop with voltage signal
:cross_mark: Wrong scaling in PLC/DCS
:cross_mark: Poor grounding/shielding

:bullseye: Key concept

:backhand_index_pointing_right: Voltage signals suffer more noise
:backhand_index_pointing_right: Current signals are more stable for industries

:light_bulb: Simple understanding

4–20 mA = Universal language between field instruments and control systems
