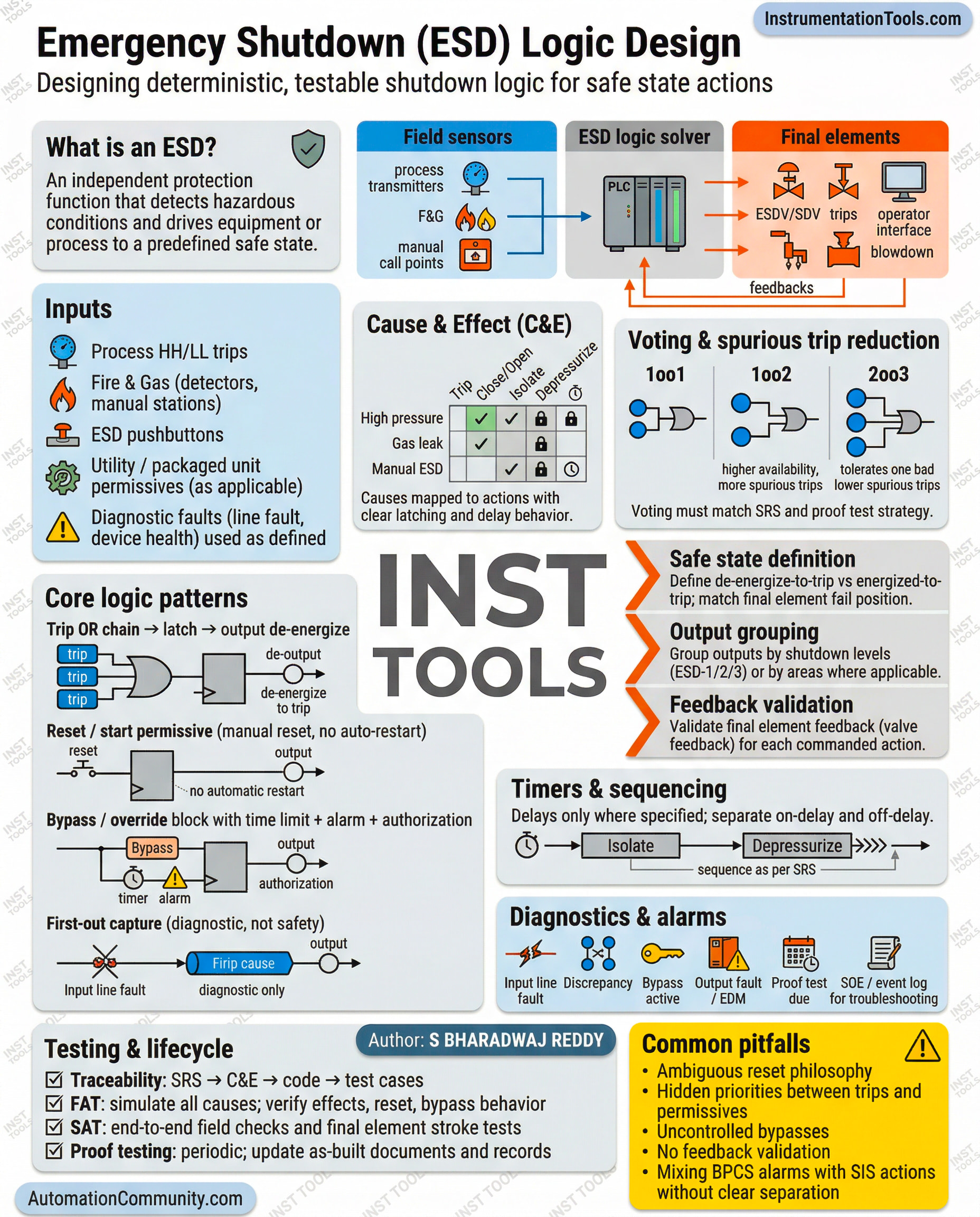

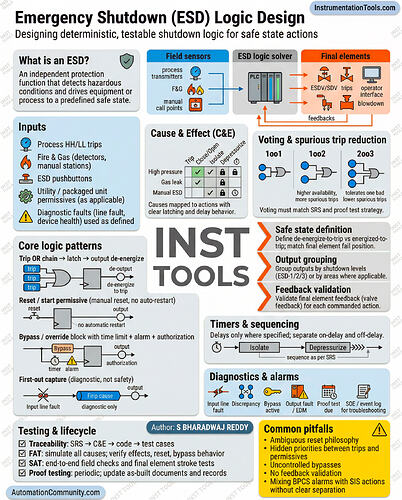

Emergency Shutdown (ESD) Logic Design — Explained Simply
In critical industries, one unsafe condition can become a disaster within seconds…
That’s why ESD logic is designed to protect the plant automatically
What is ESD Logic?
Logic used in an Emergency Shutdown System (ESD)
Detects dangerous conditions and initiates safe shutdown actions
Usually implemented in a Safety PLC / SIS
Main purpose of ESD
Protect people
Protect equipment
Prevent explosions & major accidents
Bring process to safe state
Basic ESD logic flow
Hazard detected
Safety PLC evaluates logic
Shutdown action executed
Typical ESD inputs
High-High Pressure
High Temperature
Gas Detection
Fire Detection
Manual ESD Push Button
Typical ESD outputs
Close ESD valves
Trip pumps/compressors
Shut fuel supply
Activate alarms
Important ESD design concepts
Fail-safe philosophy
De-energize to trip
Voting logic
1oo2 / 2oo3 architectures
Redundancy
Dual CPUs, redundant I/O
Independent operation
Separate from BPCS/DCS
Critical engineering practices
Minimize common cause failures
Proper cause & effect matrix implementation
Sequence of Events (SOE) logging
SIL-based design verification
Key takeaway
ESD logic is not for process control
It is designed for safe shutdown during dangerous conditions
Simple understanding
Normal PLC → Runs the process
ESD Logic → Stops the process safely
