A system failure does not always mean the process should simply stop.
In a fail-safe system, the design ensures that when a specified failure occurs, the equipment or process moves to, or remains in, a predefined safe state.

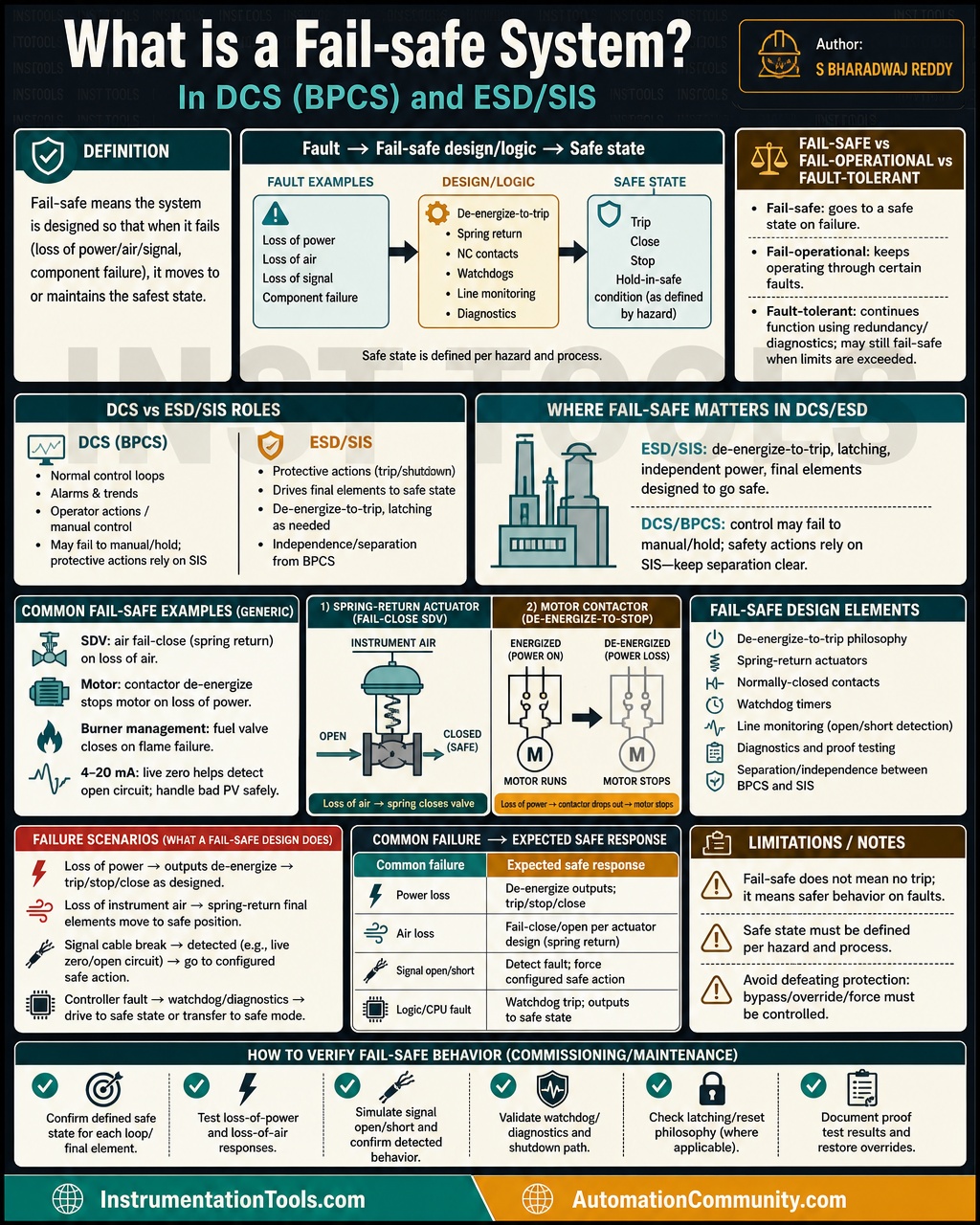

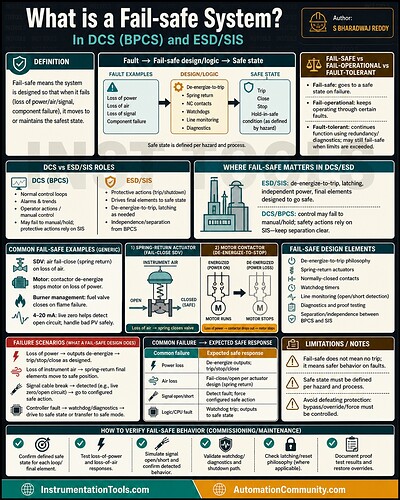

What is a Fail-Safe System?
A fail-safe system is designed so that, under specified failure conditions, the system responds in a way that minimizes the risk to people, equipment, and the environment.
In simple terms:
Failure → Defined safe response → Risk reduced
Example: Emergency Shutdown Valve
Consider a shutdown valve installed on a fuel-gas line.
If the safe condition requires the gas supply to be isolated:
Dangerous condition / loss of required actuation energy
Shutdown valve closes
Fuel supply isolated
This is commonly described as a Fail-Close (FC) arrangement.
Other fail positions can include:
Fail Open (FO)
Fail in Place (FIP)
The appropriate fail position depends on the hazard analysis and required safe state.
Example: De-Energize-to-Trip
A common safety philosophy is:
Healthy condition → Energized
Trip condition / specified failure → De-energized
For example:
Relay energized → Equipment permitted to run
Loss of power / trip signal
Relay de-energizes
Equipment trips
This can help make certain failures detectable and drive the system toward the intended safe response.
Examples of Fail-Safe Behavior
Loss of instrument air:
Air lost → Valve moves to its designed fail position
Loss of electrical power:
Power lost → Equipment moves to a predefined safe condition, where the design supports this behavior
Emergency shutdown:
ESD demand → Final elements move to their defined safe positions
Very Important
Fail-safe does NOT mean failure cannot occur.
It means the system has been designed so that specified failures result in a defined response intended to reduce risk.
Also, fail-safe is not the same as fault-tolerant.
Fail-Safe:
Failure → Move toward safe state.
Fault-Tolerant:
Fault occurs → Continue performing the required function despite the fault.
Interview Question
What is a fail-safe system?
A fail-safe system is designed so that, when specified failures or hazardous conditions occur, it automatically transitions to or maintains a predefined safe state intended to minimize risk.
Remember:
