Does anyone know where to download Loop Check sheet templates for Flow, Discrete Inputs, Discrete Outputs. ?

2 Likes
2

Did you get these loop checks pdf?

Pl share

3

No, I didn’t see the .PDF for loop check sheets. I went to the link and didn’t see any loop sheets PDF.

4

Rao,

Is there a link for some downloadable loopsheet templates?

Best Regards

5

I have these PDF documents.

Instrument Loop Test.pdf (35.4 KB)

Control System Fault Log.pdf (20.7 KB)

Commissioning.pdf (964.2 KB)

6

Thank you ! the pdf. download are perfect!

Best Regards

7

Not to ask too much, but would you know of any Loop Sheets specific to each type of device? Where the criteria on the sheet only pertains the respective instrument? (e.g. Loop sheet just for Flow Transmitter, only has Flow questioning on the sheet?)

8

Check these flow transmitter calibration reports:

Flow Transmitter Calibration Report

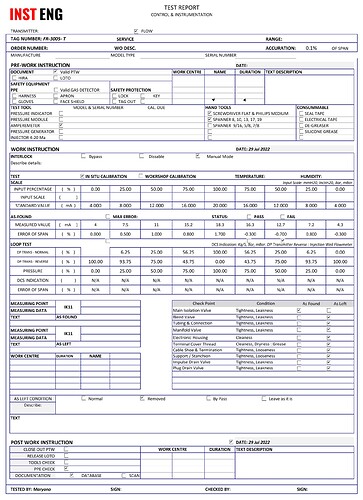

Flow Transmitter Calibration Report1920×2639 462 KB

Download Sample Excel file:

Flow Transmitter Loop Checks.xls (227.5 KB)

Download in PDF Format:

Flow Transmitter Report.pdf (213.6 KB)
