LOOP TEST IN DCS & ESD SYSTEM: How Do You Prove a Signal Works From Field to Control Room?
A transmitter may be perfectly calibrated—but that doesn’t automatically prove the complete signal path is correct.
That’s why we perform a Loop Test.

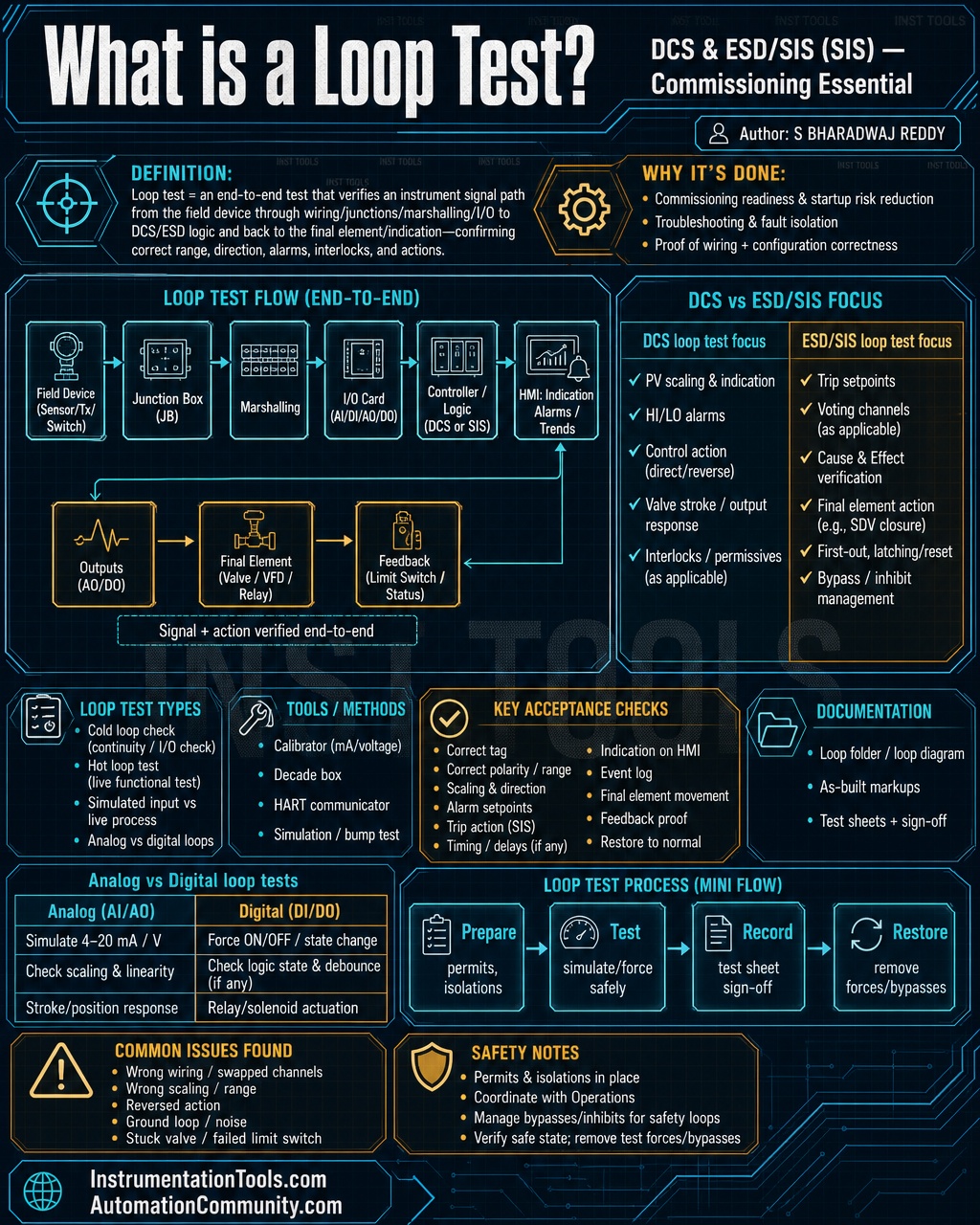

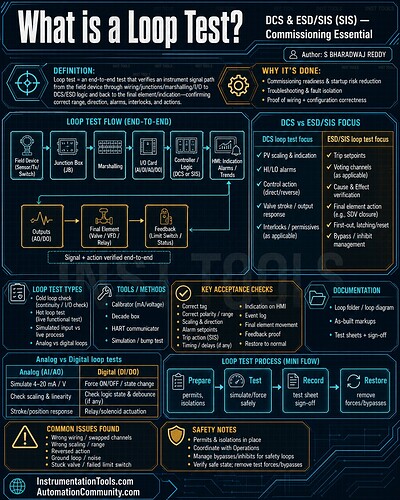

What is a Loop Test?
A loop test is a functional test performed to verify that a complete instrumentation or control signal path works correctly from the field device to the receiving system and, where applicable, through the final control element.
In simple terms:
Field → Cable → JB → Marshalling → I/O → DCS/ESD → Logic → Final Element
The objective is to confirm that the correct field signal reaches the correct destination and produces the intended response.
Loop Test in DCS
Consider a pressure transmitter connected to a DCS:
Pressure Transmitter → JB → Marshalling → AI Card → DCS
During the loop test, the field signal is simulated or generated and the DCS engineer verifies:
Correct signal received
Correct tag displayed
Correct engineering value
Correct scaling
Correct alarm generation
Correct DCS graphic indication
Example
Suppose a pressure transmitter has a range of:
0–10 bar
Apply a suitable test signal corresponding to:
0 bar → 4 mA
5 bar → 12 mA
10 bar → 20 mA
The DCS should display approximately:
0 → 5 → 10 bar
This verifies the signal path and configuration.
Loop Test in ESD System
An ESD/SIS loop test has an additional safety-critical objective.
Example:
Pressure Transmitter → JB → Marshalling → SIS/ESD I/O → Safety Logic → Solenoid → Shutdown Valve
The test may verify:
Correct transmitter input
Correct ESD input channel
Correct tag association
Correct trip setpoint
Correct Cause & Effect logic
Correct output activation
Correct solenoid operation
Correct shutdown valve response
Correct feedback indication
Because ESD systems perform protective shutdown functions, testing must follow the approved test procedure, permit requirements, bypass/inhibit controls, and plant safety procedures.
DCS Loop Test vs ESD Loop Test
| DCS | ESD |
|---|---|
| Mainly process monitoring/control | Safety/shutdown function |
| Verifies signal and control path | Verifies safety function path |
| AI/AO/DI/DO signals | Safety I/O and shutdown signals |
| May involve control outputs | May operate shutdown devices |
| Focus on correct process operation | Focus on correct protective action |
Important Difference
A DCS loop test may confirm:
“The DCS receives the correct transmitter signal.”
An ESD loop test may need to demonstrate:
“The safety input produces the intended shutdown action through the safety system and final element.”
That makes ESD loop testing particularly important during commissioning, modification, and proof/testing activities.
Interview Question
What is the purpose of a loop test?
To verify the complete signal path and intended functional response from the field device through the associated wiring, I/O, control/safety system, logic, and—when included in the test scope—the final control or shutdown element.
Calibration proves the instrument is accurate.
Loop testing proves the system works as a complete loop.
In an ESD system, that difference can be critical to plant safety.
