PLC Digital Input Module Circuit Diagram

Automation PLC
1

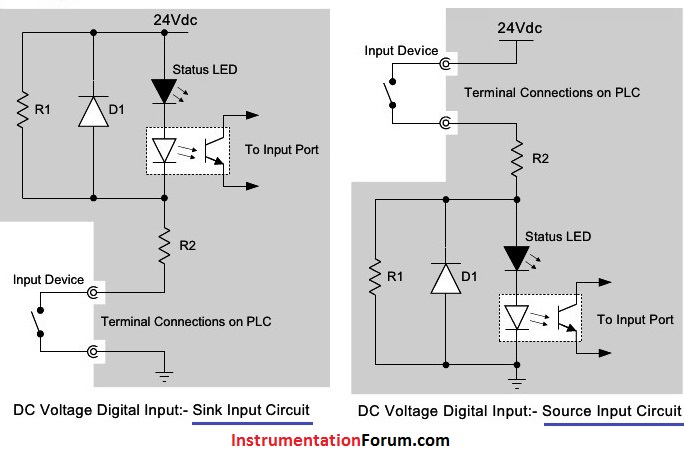

In PLC Digital Input Module, the optoisolator isolates the internal components of the PLC and the external input devices.

PLC Digital Input Module

Diode (D1) provides protection during switching from inductive devices.

PLC%20Digital%20Input%20Module%20Circuit%20Diagram
PLC%20Digital%20Input%20Module%20Circuit%20Diagram684×455 56.2 KB

Example -

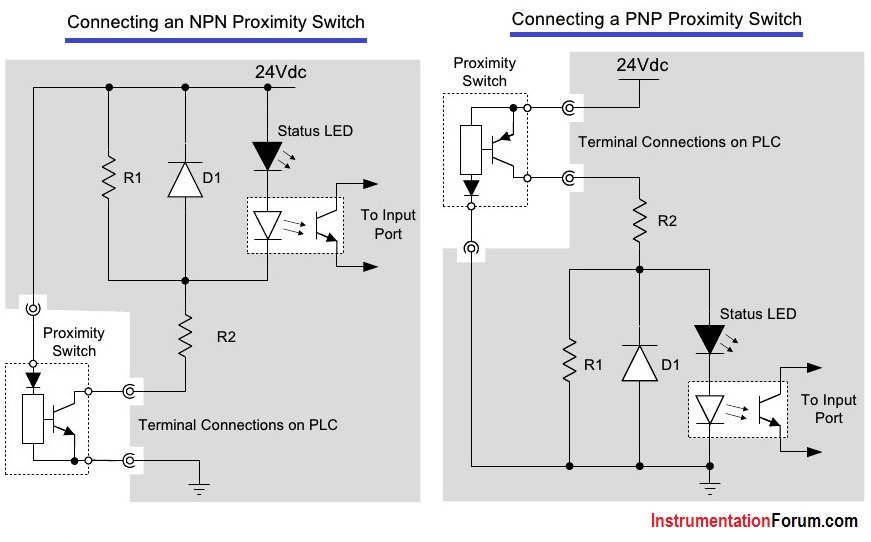

Proximity Switch Connection to PLC

Proximity%20Switch%20Connection%20to%20PLC
Proximity%20Switch%20Connection%20to%20PLC871×542 77.2 KB
