SECTION 1 – SYSTEM OVERVIEW & ARCHITECTURE

Q1. What is the Bently Nevada 3500 system and why is it used?

Answer:
The Bently Nevada 3500 is a rack-based online vibration monitoring and machinery protection system for critical rotating equipment like turbines, compressors, large pumps, and generators. It continuously measures vibration, position, speed, and related parameters using proximity probes, accelerometers, RTDs, etc., and compares them with configured alarm limits. If dangerous conditions are detected, the 3500 system drives relay outputs to trip the machine via ESD/TSI/DCS. It combines condition monitoring (for diagnostics) and protection (for shutdown) in one platform.

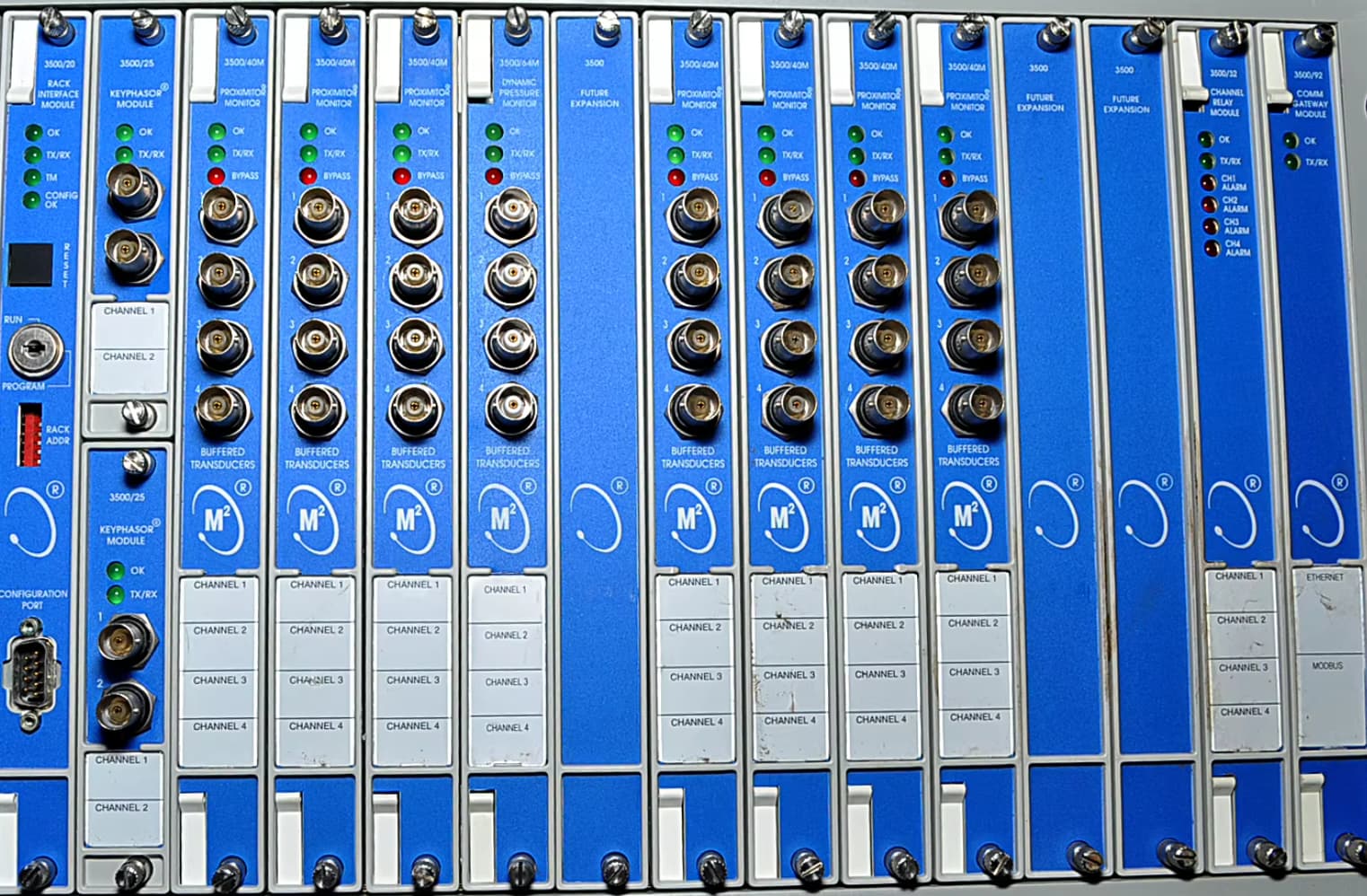

Q2. What are the main components of a 3500 rack?

Answer:
A typical 3500 rack contains:

Rack and Backplane – the chassis where all modules plug in.
Power Supply Module(s) – redundant AC/DC power for the rack.
TDI (3500/22M Transducer Interface Module) – central communication and configuration module.
Monitoring Modules – vibration, position, speed, temperature, etc.
Relay Modules – for alarm/trip outputs.
I/O Modules – terminal strips and connectors for wiring sensors and outputs.

The backplane interconnects all modules, distributes power, and carries internal data and OK/relay bus signals.

Q3. What types of racks are available in the 3500 system?

Answer:
There are mainly two:

Full-size Rack (14-slot, 19" rack) – used for large machines with many channels.
Mini-Rack – a smaller version for fewer channels or compact installations.

Both support the same module families; the choice is based on the number of measurements and panel space.

Q4. What is meant by “monitoring system” vs “protection system” in 3500?

Answer:

As a monitoring system, 3500 acquires signals, processes vibration/temperature/speed, and sends data to System 1 or DCS for trending and analysis.
As a protection system, it continuously evaluates alarms against Alert/Danger thresholds and drives relays to generate trips or warnings. Protection continues even if communications to System 1 are lost.

In other words, protection is real-time, deterministic, and independent of SCADA/DCS.

Q5. What is the “OK” concept in Bently 3500?

Answer:
“OK” is a health status indicating that a sensor and its signal chain are functioning correctly. Every channel has an OK status, and the system also has an overall OK Relay. If a probe fails (open, short, gap out of range) or a monitor/module fails, the OK status drops. Many plants wire this OK Relay into the shutdown logic or at least into an alarm for maintenance attention.

SECTION 2 – SENSORS & MEASUREMENT PRINCIPLES

Q6. What sensors are commonly connected to the Bently Nevada 3500 system?

Answer:
Typical sensors include:

Proximity probes (eddy-current probes) – for radial vibration, shaft position, thrust position, speed (Keyphasor).
Accelerometers / Velocity transducers – for casing/bearing housing vibration.
RTDs / Thermocouples – for bearing metal and casing temperatures.
Keyphasor probes – for once-per-revolution reference pulses.

These sensors feed into appropriate monitor modules (e.g., 3500/40M, 3500/42M, 3500/25, 3500/60).

Q7. How does a proximity probe work in a Bently Nevada system?

Answer:
A proximity probe uses eddy-current technology. A high-frequency signal is sent to the probe from a Proximitor (driver). The probe faces a conductive shaft; the eddy currents induced in the shaft change the reflected signal amplitude. This is converted into a voltage proportional to the gap (distance) between probe tip and shaft surface. AC components on this DC gap signal represent vibration, while the DC level itself represents the average shaft position.

Q8. What is gap voltage and what is its typical range?

Answer:
Gap voltage is the DC component output from the Proximitor, representing shaft-to-probe distance. For standard Bently probes with -200 mV/mil scale, typical gap voltages are around -10 to -12 VDC for a mid-range gap. Acceptable working range is usually about -8 to -18 VDC depending on probe type. Too high (less negative) or too low (more negative) gap voltage indicates the probe is too far or too close to the shaft or not correctly calibrated.

Q9. What measurements are derived from proximity probes?

Answer:
From proximity probes, 3500 can derive:

Radial vibration (X/Y) – shaft dynamic motion at bearing points.
Shaft centerline position – average shaft position within bearing clearance.
Axial thrust position – thrust bearing position relative to a reference.
Rotational speed and phase – using Keyphasor (once-per-rev pulses).

These are critical for diagnosing imbalance, misalignment, rubs, thrust bearing wear, rotor bow, etc.

Q10. How is bearing housing vibration measured?

Answer:
Bearing/casing vibration is typically measured with accelerometers or velocity transducers mounted on the bearing housing or casing. The 3500/42M module accepts these sensors and processes the signals into vibration amplitude (mm/s RMS or mils pk-pk) and other parameters. This is useful when there’s no access or provision for shaft-mounted proximity probes.

SECTION 3 – KEY MODULES & THEIR FUNCTIONS

Q11. What is the purpose of the 3500/22M TDI (Transducer Interface Module)?

Answer:
The TDI acts as:

The communication gateway between the 3500 rack and System 1 software or other systems (via Ethernet, Modbus, etc.).
The configuration host, storing and distributing configuration to the monitor modules.
The event logger, capturing alarms, OK status changes, and system events.

Important point: even if the TDI fails or is removed, the protection functions in the monitor modules continue; only data communication and config interface are affected.

Q12. What does the 3500/40M Proximitor Monitor do?

Answer:
The 3500/40M is designed to interface with proximity probes and Proximitors. Functions include:

Measuring radial vibration, thrust position, or eccentricity, depending on configuration.
Converting raw probe signals into engineering units (e.g., μm pk-pk, mils pk-pk, μm position).
Monitoring OK status for probes and Proximitors.
Comparing measured values to Alert and Danger setpoints.
Sending alarms and status to TDI and relay modules.

Q13. What is the 3500/42M Proximitor/Seismic Monitor used for?

Answer:
The 3500/42M is a flexible module that can accept both proximity probes and seismic (accelerometers/velocity) sensors. It can be configured per channel as:

Radial vibration (prox)
Shaft position (prox)
Casing vibration (seismic)
Absolute shaft vibration (combining casing and shaft)

This makes it very useful for machines where a mix of shaft and casing measurements are needed in one rack.

Q14. What is the role of the Keyphasor module (e.g., 3500/25)?

Answer:
The Keyphasor module receives pulses from Keyphasor probes (proximity or magnetic pickups). These pulses represent once-per-revolution (or known-per-rev) shaft reference. The system uses this for:

Measuring speed.
Determining phase angle of vibration relative to shaft rotation.
Enabling advanced plots (ORBIT, Bode, polar).

Without a reliable Keyphasor, phase-based diagnostics and accurate speed tracking are compromised.

Q15. What function do the Relay Modules (e.g., 3500/32M) provide?

Answer:
Relay modules:

Receive alarm status and trip conditions from monitor modules over the rack’s internal bus.
Implement voting logic (1oo2, 2oo3, etc.) for shutdowns.
Drive dry contact outputs that are wired to turbine trip circuits, ESD/TSI, DCS trip inputs, or annunciators.

They are essential for converting measurement alarms into real hardwired protection signals.

Q16. What is the role of Temperature Monitor modules (e.g., 3500/60, 3500/61)?

Answer:
These modules accept RTD or thermocouple inputs and:

Measure bearing metal temperature, winding temperature, lube oil temperature, casing temperature, etc.
Provide Alert and Danger alarms on high temperatures.
Contribute to shutdown logic via relays (overtemperature trip).

They extend the system’s protection beyond just vibration.

Q17. What does the Power Supply module do and why is redundancy important?

Answer:
The power supply module provides regulated DC power to all modules in the rack. Redundancy (dual supplies) ensures:

If one supply fails, the other takes over seamlessly.
Availability of the protection system remains high.

In critical services, dual independent power feeds are often used (e.g., two different UPS sources).

SECTION 4 – ALARMS, TRIPS & LOGIC

Q18. What are Alert and Danger alarms in the 3500 system?

Answer:

Alert Alarm – Indicates the parameter has crossed a warning threshold. The machine can continue running, but maintenance attention is needed. Typically used for predictive maintenance and trending.
Danger Alarm – Indicates a critical condition that could damage the machine. Usually wired into trip relays to shut down the machine automatically or initiate a controlled shutdown.

Q19. What is the difference between Alarm, Danger, and Not OK?

Answer:

Alert – Value exceeded warning limit.
Danger – Value exceeded trip limit (high risk).
Not OK (OK dropped) – The measurement itself is invalid due to sensor or circuit failure (open/short, no signal, out of operating range).

A machine can be OK but in Alert/Danger alarm, or it can be Not OK (sensor failure) even if actual vibration is unknown.

Q20. What is the purpose of Trip Multiply ™?

Answer:
Trip Multiply temporarily increases alarm and/or trip limits by a set factor (e.g., 2×) during certain machine operating conditions:

Startup (run-up through critical speeds)
Coast-down
Short-term abnormal but acceptable conditions

It prevents nuisance trips during transients while still retaining some level of protection.

Q21. How is shutdown voting logic implemented (1oo2, 2oo3, etc.)?

Answer:
Monitor modules send alarm statuses (Danger) over the rack bus to the Relay module. The Relay module is configured for logic such as:

1oo2 – Trip if any one of two measurements is in Danger.
2oo3 – Trip if two out of three related measurements are in Danger (more fault-tolerant).
2oo2 – Both must be in Danger to trip.

This logic is configured in the relay module configuration and is used to balance safety vs. spurious trips.

Q22. What is an OK Relay and what is it typically used for?

Answer:
The OK Relay is a special system-level relay output indicating overall health of the 3500 rack (modules OK, power OK, communication OK). If significant faults occur (e.g., a critical module or sensor fails), the OK Relay drops. Plants may:

Alarm on OK Relay drop (maintenance action).
In some high-integrity applications, trip or block start if OK is lost, based on SIL and design philosophy.

Q23. How are alarm events typically integrated into the DCS/TSI?

Answer:
Integration is usually via:

Hardwired contacts (Alert and Danger relays to DCS digital inputs).
Modbus/OPC communications from TDI to DCS or historian for values and statuses.
Trip circuits from Danger relays to turbine trip relay or ESD input.

DCS displays vibration values, trends, and alarm statuses for operator awareness, while the 3500 itself is the certified protection system.

SECTION 5 – COMMUNICATION & SYSTEM 1

Q24. What is System 1 in the context of Bently Nevada?

Answer:
System 1 is Bently’s software platform for:

Remote monitoring and diagnostics of rotating machinery.
Viewing trends, orbits, Bode plots, FFT spectra, polar plots, etc.
Storing historical data, events, and configuration.
Supporting condition-based maintenance and advanced analysis.

The 3500’s TDI sends data to System 1 over Ethernet.

Q25. What happens to protection if the communication to System 1 fails?

Answer:
Protection is not affected. The 3500 monitor modules continue measuring and tripping locally. Loss of System 1 only means you lose remote trending/diagnostics and configuration access; the machine is still protected.

Q26. What communication protocols does 3500 support to interface with DCS/PLC?

Answer:
Depending on configuration and hardware, the 3500 system can support:

Modbus RTU (serial)
Modbus TCP (Ethernet)
OPC DA/AE via System 1 or gateways

These are used to share processed values (e.g., vibration levels, temperatures) and alarm statuses with DCS, SCADA, or historian.

Q27. How are parameters like vibration amplitude, OK status, and alarm status mapped to DCS?

Answer:
Each parameter (e.g., X-vibration, Y-vibration, thrust position, bearing temperature, alert status, danger status, OK status) has an address in the 3500 Modbus map. DCS reads these using standard Modbus function codes. Detailed mapping is done during engineering/commissioning and kept in integration documentation.

SECTION 6 – INSTALLATION & COMMISSIONING

Q28. What are the key steps in installing Bently Nevada proximity probes on a machine?

Answer:
Key steps:

Select proper probe location (bearing planes, standard orientations).
Install probe in threaded or clamp holder with locknut.
Set gap using feeler gauge/micrometer and monitor gap voltage (~-10 VDC typical).
Route coaxial cables to Proximitor, avoiding high-noise sources.
Earth/shield properly at one end as per manufacturer guidelines.
Check sensor linearity and OK status from the 3500 module or handheld meter.

Q29. What is shaft runout and why must it be checked?

Answer:
Shaft runout is the geometric imperfection of shaft roundness and surface, which appears as “vibration” even when the shaft is not dynamically vibrating. It is measured by slowly rotating the shaft and recording the probe output. Runout must be known so that dynamic vibration values can be corrected, especially when setting alarm limits for machinery where geometric runout is significant.

Q30. What tests are done on the 3500 system during pre-commissioning?

Answer:

Module power-up and OK checks.
Gap and sensor integrity checks for all probes.
Loop checks using simulated signals or shaker tests.
Alarm and trip functional tests – verify Alert and Danger responses.
Relay logic test – confirm correct voting and correct trip outputs.
Communication tests with DCS/System 1.
Documentation of all setpoints, channel IDs, and wiring references.

Q31. How do you simulate vibration to test the system without running the machine?

Answer:

Options:

Use a signal generator that can feed Proximitor or monitor input directly with a known AC signal.
For seismic sensors, a portable vibration exciter/shaker may be used.
Use vendor-specific test adaptors that allow injecting synthetic signals into the monitor channels to check alarm thresholds and relay operation.

Q32. What is “channel configuration” in 3500 and what does it include?

Answer:
Channel configuration defines how each input channel behaves. It includes:

Measurement type (radial vibration, thrust, temperature, speed, etc.).
Sensor type and scaling (probe type, mV/mil, RTD type).
Bearing/shaft identification.
Alarm setpoints (Alert and Danger).
OK detection parameters.
Filter settings (1X, 2X, broadband, etc. depending on module).

This configuration is done via configuration software and stored in both TDI and monitor modules.

SECTION 7 – KEY DIAGNOSTIC CONCEPTS (SYSTEM 1)

Q33. What is an ORBIT plot and why is it important?

Answer:
An ORBIT plot shows the actual path of the shaft centerline within the bearing clearance, using X and Y proximity probe signals. It’s important because:

It reveals rotor behavior (e.g., elliptical orbit, rubs, oil whirl).
It shows phase relationships between directions.
It helps distinguish between simple imbalance and more complex faults (e.g., misalignment, looseness).

Q34. What is a Bode plot in vibration analysis?

Answer:
A Bode plot shows amplitude and phase vs. speed or frequency during speed ramp-ups or coast-downs. It helps identify:

Critical speeds where resonance occurs.
How phase changes across these speeds.
Stability and damping characteristics of the rotor-bearing system.

Q35. What is a waterfall plot?

Answer:
A waterfall plot is a series of frequency spectra displayed over time or speed, looking like cascading “waterfalls”. It visually shows how vibration frequency content changes as the machine speed or load changes, which helps in diagnosing resonance, harmonics, and evolving faults.

Q36. What is shaft centerline plot and what does it indicate?

Answer:
A shaft centerline plot shows how the shaft axis moves within the bearing clearance as speed or load changes. By plotting the average X and Y positions, you can see if the rotor is centered, orbiting, or drifting towards bearing edges. Large shifts can indicate thermal bow, misalignment, or changing bearing conditions.

SECTION 8 – COMMON FAULTS & TROUBLESHOOTING

Q37. What can cause a Proximitor channel to show “Not OK”?

Answer:

Open cable connection.
Shorted probe or cable.
Wrong or incompatible probe/Proximitor combination.
Gap beyond linear range (too far or too close).
Power supply problem on Proximitor.
Loose BNC or terminal connection.

Troubleshooting involves checking power, measuring gap voltage locally, and continuity testing cables.

Q38. If radial vibration suddenly increases on one bearing, what will you check?

Answer:

Confirm reading with local instrument or handheld analyzer.
Check probe gap and OK status.
Inspect for mechanical issues: imbalance, misalignment, rubbing, looseness.
Compare X and Y probes and phase changes.
Check process changes: load, pressure, temperature.
Review event logs to see if increase coincides with any operational change.

Q39. What could cause a sudden jump in thrust position reading?

Answer:

Actual thrust bearing wear or failure causing axial rotor shift.
Process upset causing large axial loading.
Probe loose or physically moved.
Wiring fault or Proximitor malfunction.
Incorrect zeroing/reset of thrust reference.

Mechanical inspection of the thrust bearing is usually urgent in such cases.

Q40. A machine trips on high vibration, but System 1 shows only moderate vibration – what could be wrong?

Answer:

DCS or System 1 may be reading a different scaling or a different channel than the trip channel.
Alarm setpoints in the 3500 may be lower than operator expectations.
Legacy or test configuration may be active (wrong units/alarm).
The trip may have come from another protection path (temperature, another bearing, external ESD input).
Delay in data refresh in System 1 vs. real-time trip.

You must correlate the exact trip relay and its source monitor channel.

Q41. Why might you see frequent false trips during startup?

Answer:

Trip Multiply not enabled or incorrectly configured during run-up.
Alarm limits set too close to the transient expected levels.
Inadequate filtering or wrong measurement type.
Poor tuning of vibration thresholds based on machine commissioning tests.
Sensor location exposed to excessive structural resonance during startup.

Q42. What steps do you follow if the TDI shows communication errors or timeouts?

Answer:

Check rack power supplies, module OK lights.
Verify Ethernet link, IP settings, and network switch health.
Reseat the TDI module if necessary.
Try reconnecting from System 1 or configuration software.
Confirm firmware compatibility if anything was recently updated.

Again, protection is still functioning; the issue is diagnostic access.

SECTION 9 – VOTING, SIL & SAFETY PHILOSOPHY

Q43. Why is 2oo3 voting used on some critical vibration measurements?

Answer:
2oo3 (two out of three):

Reduces the risk of spurious trips from a single faulty sensor.
Still maintains high safety integrity; actual fault must be confirmed by at least 2 channels.
Often used in SIL-rated protection loops for major turbines and compressors.

Q44. How do you decide which measurements go into shutdown logic?

Answer:

Based on hazard analysis (HAZOP) and SIL study.
Typically include: thrust position, high radial vibration on critical bearings, overspeed, high bearing temperatures.
Less critical points may generate alarms only, not trips.
The decision is documented in the Shutdown Philosophy / Cause & Effect.

Q45. What is the role of the 3500 system in a SIL loop?

Answer:
The 3500 monitors and relays form part of the SIF (Safety Instrumented Function), for example “High vibration trip”. Its hardware reliability, diagnostics coverage (OK status), and voting configurations contribute to the SIL rating of that protective function.

SECTION 10 – DETAILED MODULE BEHAVIOR & SETTINGS

Q46. What filtering options are typically available on vibration monitors?

Answer:

Broadband (overall amplitude over a frequency band).
Narrowband (1X, 2X speed components).
High-pass / Low-pass filters to remove undesired noise.

Correct filter selection is important to ensure alarms are based on the frequencies that matter (e.g., 1X for imbalance, 2X for misalignment).

Q47. What is DC and AC component in a proximitor signal and how are they used?

Answer:

DC component → average shaft position (centerline or thrust position).
AC component → dynamic vibration (displacement).

The monitor module separates these; DC may be used for position protection, AC for vibration protection.

Q48. Why is phase measurement important in vibration analysis?

Answer:
Phase reveals the relative timing of vibration peaks vs. shaft rotation. It helps differentiate:

Imbalance vs misalignment vs looseness.
Whether two bearings are vibrating in phase or out-of-phase.
Whether changes in vibration come with significant phase shifts (indicative of passing critical speeds or changing dynamic modes).

Q49. How does the system detect a “Not OK” condition for seismic sensors?

Answer:

Internal sensor bias voltage out of expected range.
Open circuit or short circuit in sensor wiring.
No dynamic signal detected when significantly expected.
Internal fault in the monitor’s input circuits.

Q50. How are bearing temperature channels configured in 3500?

Answer:

Choose sensor type (e.g., 100 Ω Pt RTD, Type K thermocouple).
Set scaling in °C or °F.
Configure Alert/Danger thresholds (typically based on design bearing temp limits).
Configure latching or non-latching alarms.
Assign channels to relay voting logic if used for trip.

SECTION 11 – LEAD INSTRUMENTATION ENGINEER PERSPECTIVE

Q51. As a Lead Instrumentation Engineer, what are your responsibilities regarding Bently 3500 during a new project?

Answer:

Review and approve instrument datasheets for all probes and monitors.
Validate sizing and location of measurement points with mechanical/rotating team.
Approve rack configuration, module selection, voting logic.
Ensure correct integration with DCS, ESD, and turbine control systems.
Participate in FAT, SAT, and site commissioning for 3500.
Prepare/approve maintenance and test procedures for periodic proof tests.

Q52. How often should you perform proof tests on 3500-based protection loops?

Answer:
Interval depends on SIL calculations and company standards, but typically 1–3 years. Proof tests verify:

Alarm and trip functionality.
Relay logic and wiring integrity.
Sensor health and OK detection.

These are often done during major turnarounds or planned shutdowns.

Q53. How would you handle a situation where maintenance wants to bypass vibration trip for a short period?

Answer:

First, check if bypass is allowed by plant safety procedures.
If allowed, implement bypass or inhibit via 3500 configuration or external key-switch as per design.
Ensure clear temporary operating instructions, signage, and logging.
Minimize the duration of bypass and restore normal protection promptly.

Q54. What documents must you maintain for the 3500 system long-term?

Answer:

Final rack configuration printout.
Wiring diagrams and terminal plans.
Cause & Effect and shutdown logic drawings.
Historical trip and alarm reports.
Maintenance and proof-test records.

This documentation is critical for audits, RCFA, and future modifications.

SECTION 12 – MORE PRACTICAL TROUBLESHOOTING Q&A (55–100)

To keep this answer from becoming unreadably long, I’ll list additional question prompts with short but still practical answers you can expand mentally. These are all realistic interview lines:

Q55. What do you check if a single vibration channel shows zero reading but OK is still true?

Misconfigured scaling or range, incorrect channel type, wrong sensor wired, or alarm set to wrong input. Also check if the sensor is actually mounted correctly and not measuring a dead surface.

Q56. What do you check if multiple channels go Not OK simultaneously?

Common cause like power supply issue, rack problem, grounding fault, or a common cable tray damage affecting multiple sensors.

Q57. Why is grounding important for 3500 systems?

Improper grounding can introduce noise, cause false alarms, or damage input circuits due to surge or ground loops. Bently recommends very specific grounding practices for shields and rack.

Q58. How do you distinguish between true mechanical vibration and electrical noise?

Noise usually appears as random or narrow spikes, not proportional to speed, and often changes when cables are moved. True vibration correlates with machine speed/load and is consistent between redundant measurement paths.

Q59. Can 3500 measure overspeed?

Yes, via Keyphasor speed measurement or dedicated overspeed systems (though many machines still use a separate certified overspeed trip device). 3500 speed can be used for alarm and non-SIL trip in many plants.

Q60. What is the significance of 1X, 2X, and sub-synchronous components?

1X → typically imbalance.
2X → misalignment, bent shaft.
Sub-synchronous (0.3–0.5X) → oil whirl/whip or fluid-induced instabilities.

Q61. Why do we sometimes install two X/Y probe pairs at the same bearing?

For redundancy, 2oo3 schemes, cross-checking vibration direction, or separate monitoring paths for protection vs diagnostics.

Q62. What is a “Danger Bypass” switch and how should it be used?

A hardware or software mechanism to temporarily bypass Danger trips, typically used only during maintenance with formal procedure, lockout/tagout, and management approval.

Q63. What are typical alarm setpoints for radial vibration?

Values vary by machine, but often Alert around 60–70% of design limit and Danger closer to 80–90% of allowed vibration, with exact numbers defined in OEM specs.

Q64. Why do we measure both X and Y vibration at a journal bearing?

To reconstruct true shaft motion in the radial plane and enable orbit and centerline analysis. Single-direction measurements can miss important components.

Q65. What is the effect of incorrect probe linear range selection?

If the probe is operating near the edge of its linear range, both DC position and AC vibration readings become unreliable and could cause false trips or missed trips.

Q66. What is the use of proximity probes on gear teeth instead of shaft surface?

Gear tooth probes are often used for speed/Keyphasor or for detecting gear faults based on tooth passing frequency.

Q67. How can you verify the direction (polarity) of a proximity probe?

By moving a piece of metal towards/away and observing voltage change: more negative typically means closer in Bently systems; the config must match this polarity.

Q68. What is cross-coupling in vibration measurements?

When X and Y directions influence each other due to mounting or structural conditions, causing orbits to appear skewed or elliptical, and complicating diagnosis.

Q69. How do you handle a sensor that is known to be noisy but cannot be replaced immediately?

Adjust alarm limits cautiously, possibly temporarily inhibit that measurement from trip voting while ensuring other independent measurements still protect the machine. Document everything.

Q70. How does 3500 handle channel bypass/inhibit?

Channels can be set to Inhibit (ignore alarms/trips) during configuration or through external logic; this must be used carefully and usually logged.

Q71. What do you check if system OK is fine but a single relay is not energizing?

Check relay configuration, test mode, wiring continuity to coil, mechanical failure of relay, or that the monitored alarm condition logic is truly satisfied.

Q72. What is the role of 3500 during machine coast-down?

Continue monitoring vibration, detect passing of critical speeds, and ensure no abnormal behavior occurs when load is removed and speed decreases.

Q73. How could ambient temperature affect the 3500 rack?

Extreme temperatures can affect electronics and sensor bias; racks are usually installed in air-conditioned MCC/CCR areas to maintain stability.

Q74. What’s the difference between broadband and narrowband alarms?

Broadband monitors overall vibration energy; narrowband alarms focus on a specific frequency (e.g., 1X) and are better at targeting specific fault types.

Q75. Why might you need to recalibrate channels after major mechanical maintenance?

Because shaft alignment, bearing clearances, or probe positions might have changed, affecting baseline vibration and positions; thresholds might need adjustment.

Q76. How can you use 3500 data for RCFA (Root Cause Failure Analysis)?

Historical vibration trends, alarm logs, orbits, Bode plots, and centerline plots can be correlated with process events to determine whether a trip was due to imbalance, misalignment, rub, lubrication issues, or external shocks.

Q77. Why is it risky to rely only on casing vibration for large steam turbine rotors?

Casing vibration may not fully reflect true shaft motion, especially on large flexible rotors. Shaft vibration via prox probes is more sensitive and often required by OEM/standards.

Q78. How does the 3500 system behave if one power supply fails in a dual-supply rack?

The remaining power supply continues to power the rack with no loss of protection; an alarm typically indicates the failed supply for maintenance.

Q79. How do you test the OK relay output?

Simulate a fault (e.g., remove a probe to cause Not OK) and verify that the OK relay changes state as configured, and that DCS/annunciators receive the signal.

Q80. What could cause a relay chattering or rapid toggling?

Unstable alarm condition near setpoint, wrong hysteresis settings, unstable measurement due to noise, or faulty relay contact.

Q81. Can 3500 handle redundant Keyphasor inputs? Why?

Yes, usually multiple Keyphasor probes are used for redundancy and for separate shafts/gear trains to ensure reliable speed and phase reference.

Q82. How do you handle differences between OEM-recommended vibration limits and your company standards?

Typically, OEM values are taken as primary reference; company standards may add more conservative margins. Any deviation must be formally risk-assessed and approved.

Q83. Why is configuration management (version control) important for 3500?

Uncontrolled configuration changes can alter alarm limits or logic inadvertently, causing unsafe operation or spurious trips. You should always maintain versioned backups and change logs.

Q84. How does the 3500 contribute to predictive maintenance programs?

By continuously trending vibration and temperature, and providing diagnostics through System 1, allowing condition-based maintenance, early detection of developing faults, and planning outages rather than reacting to trips.

Q85. What is the risk of disabling “Not OK” detection for a channel?

The system may treat a failed sensor as valid, masking a loss of protection for that measurement; this has serious safety implications.

Q86. How can improper cable routing affect 3500 performance?

Route near high-voltage cables can introduce noise, cause induced voltages, ground loops, or spike damage during switching/surges.

Q87. What is typical training for technicians working with 3500 systems?

They should understand probe installation/gapping, basic vibration concepts, configuration basics, how to use System 1 for basic diagnostics, and how to carry out functional tests safely.

Q88. Why do we keep probe extension cable lengths fixed and matched to Proximitor type?

Proximitor/probe/cable sets are calibrated as a system. Changes in cable length can affect calibration, linearity, and scale factor.

Q89. How do you verify that DCS values match the 3500 rack indications?

During commissioning, cross-check channel-by-channel: compare the 3500 local measurement (via config/System 1) with DCS faceplate value at the same time and correct scaling or mapping errors.

Q90. When replacing a probe, what checks do you perform before declaring it healthy?

Check gap voltage, OK status, vibration signal behavior under normal operation, and confirm no spurious alarms.

Q91. How can you use alarm/event logs in TDI for troubleshooting?

Event logs show sequence of alarms, OK drops, configuration changes, and trips. This helps reconstruct what happened leading up to a trip or incident.

Q92. When would you use a mini-rack instead of a full-size rack?

For smaller machines with fewer measurement points, in compact panels, or when retrofitting limited sets of sensors.

Q93. What is the advantage of using a dedicated vibration protection system like 3500 instead of only DCS-based vibration monitoring?

3500 is designed and certified for high reliability, fast, deterministic protection, with built-in diagnostics (OK detection), while DCS is typically not SIL-rated for high-speed machinery trip functions.

Q94. How are bearing numbers and channel tags typically mapped?

Example: Bearing 1 X → Channel 1, Bearing 1 Y → Channel 2, Bearing 2 X → Channel 3, etc., with consistent naming across P&IDs, cause & effect, and System 1.

Q95. What is “backup protection” in context of vibration trips?

Having multiple independent paths (e.g., radial vibration and casing vibration, or two different sensors) that can both detect dangerous conditions and trip the machine, in case one path fails.

Q96. How do you handle nuisance alerts that operators complain about but are not dangerous?

Review trends and setpoints, adjust Alert setpoints with engineering justification, or improve measurement filtering, but keep Danger limits aligned with safety requirements.

Q97. Why is it important to check direction of shaft rotation vs Keyphasor phasing?

Phase analysis depends on knowing where the Keyphasor pulse occurs relative to mechanical features (keyway, balance weight). Errors can mislead diagnostics.

Q98. In what cases would you configure a channel as “Position” instead of “Vibration”?

For thrust bearings and centerline monitoring where DC position is critical, while AC vibration is secondary.

Q99. What is the impact of a stuck or failed relay in the 3500 system?

A stuck relay that fails to open on Danger may prevent trip, compromising protection; a relay stuck closed may cause false trip. That’s why proof testing and periodic relay checks are important.

Q100. If a plant wants to add new probes and channels to an existing 3500 rack, what steps are needed?

Answer (slightly longer):

Verify spare slots and power capacity in existing rack.
Add required monitor and I/O modules as per vendor recommendations.
Update configuration (channel types, alarms, relay logic, Modbus mapping).
Update wiring diagrams, C&E, and DCS mappings.
Perform full loop checks and alarm/trip tests for new channels.
Document and back up the updated configuration and communicate to operations/maintenance.
