What is the effect of excessive integral action in a PID control loop?

Multiple Choice Questions Automation MCQ
1

integral action in a PID control loop

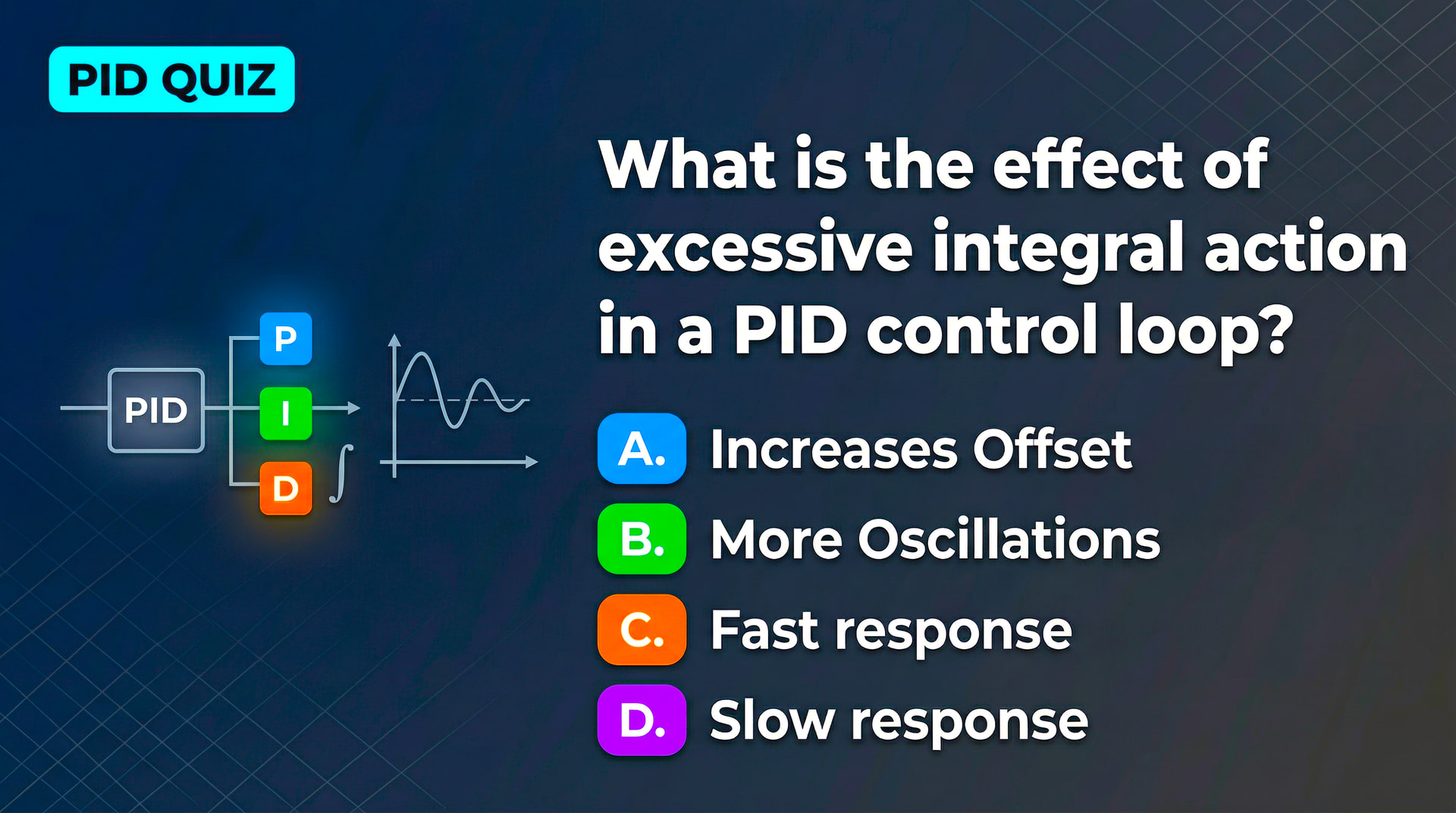

integral action in a PID control loop1920×1072 423 KB

What is the effect of excessive integral action in a PID control loop?

A. Increases Offset

B. More Oscillations

C. Fast response

D. Slow response

View Answer

Correct Answer: B

2

:magnifying_glass_tilted_right: Detailed Explanation

Integral action works by accumulating error over time and continuously increasing the controller output until the steady-state error becomes zero.

When integral action is set too strong (very small Ti or high integral gain):

  1. The controller accumulates error very rapidly.

  2. Output keeps increasing even when the process variable is already approaching the setpoint.

  3. This causes the PV to overshoot.

  4. The integral term then reverses direction.

  5. The cycle repeats.

This results in:

:warning: Sustained oscillations
:warning: Reduced stability
:warning: Possible instability in severe cases

:cross_mark: Why Other Options Are Incorrect

A) Increases Offset
Integral action actually removes offset. It does not increase it.

C) Fast Response
Excessive integral does not improve response speed properly. It causes instability, not controlled fast response.

D) Slow Response
Strong integral action generally causes aggressive behavior, not sluggish behavior.

:fire: Practical Plant Insight

In real industrial systems:

  • High integral gain → “Hunting” behavior

  • Control valve constantly moving

  • Reduced equipment life

  • Unstable temperature/pressure/flow

:bullseye: Engineering Rule

If the loop is:

  • Oscillating slowly → Check integral gain

  • Overshooting repeatedly → Reduce integral strength (Increase Ti)
