1oo2D Voting Logic Explained (One out of Two with Diagnostics)
In Safety Instrumented Systems (SIS), reliability is critical.
One common architecture used to improve safety and availability is 1oo2D voting logic.
1oo2D Voting Logic
Let’s understand it quickly
What does 1oo2D mean?
1oo2 = One out of Two sensors required to trip

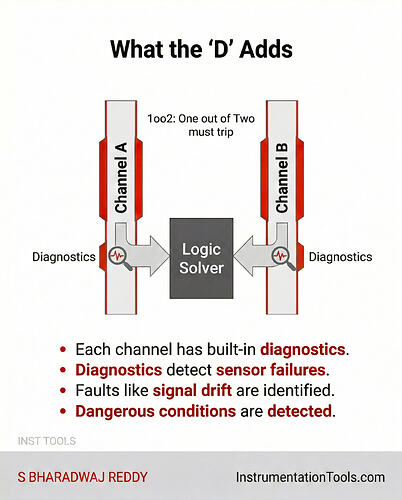

D = Diagnostics
The system continuously monitors sensor health and faults using diagnostics.

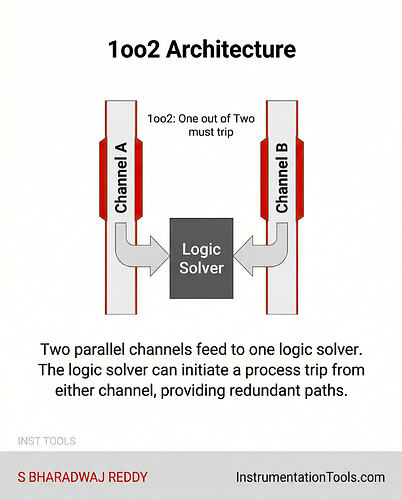

How it works
Two sensors measure the same process variable.
Sensor 1
Sensor 2

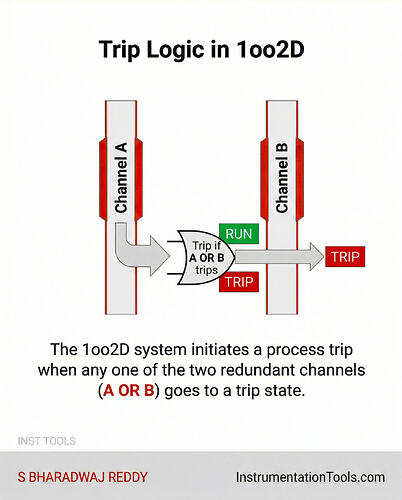

If any one sensor detects a dangerous condition → Trip occurs

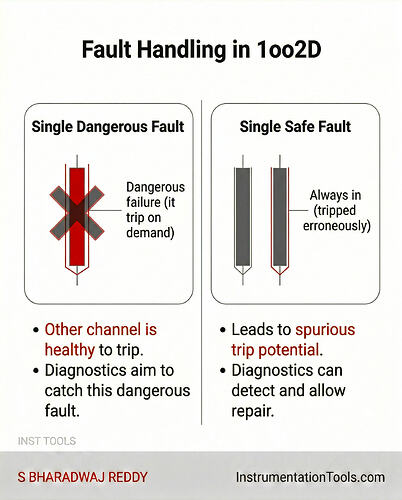

But the system also checks for:
Sensor failures
Signal deviations
Internal diagnostics

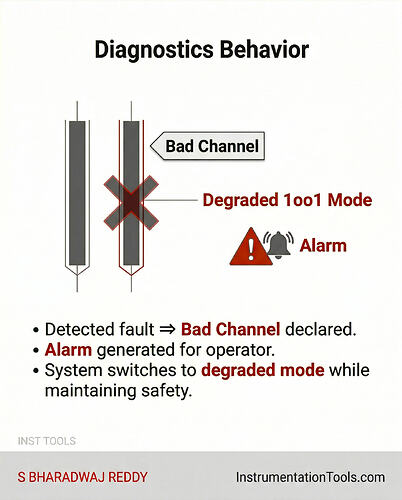

Why diagnostics are important
Diagnostics help the system detect faulty sensors early.
Identifies sensor faults automatically
Prevents hidden failures
Improves safety reliability

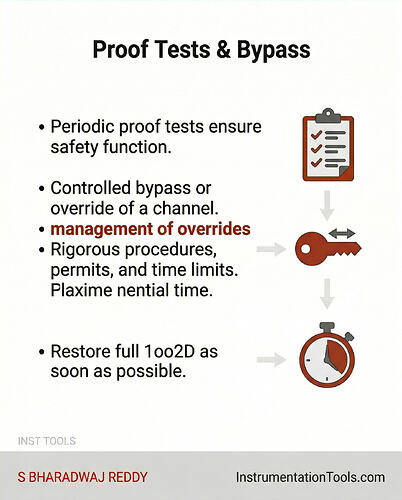

Allows maintenance before failure
Where 1oo2D logic is used
Common in modern safety systems such as:
Burner Management Systems (BMS)
Oil & Gas Safety Systems
Safety Instrumented Systems (SIS)
Critical process protection loops
Key advantages
Faster trip response
Fault detection through diagnostics
Better safety integrity level (SIL capability)

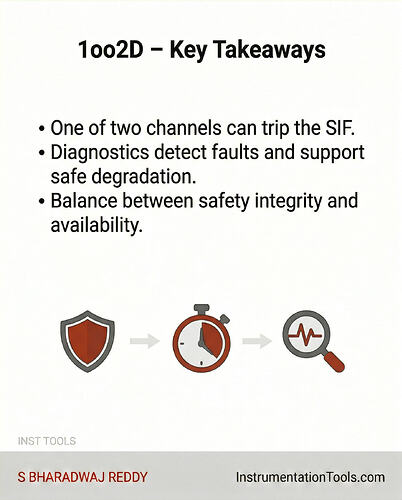

Simple idea
Any one sensor can trip the system
Diagnostics detect sensor failures
Improves both safety and reliability
