Circuit operation BELOW resonance is represented by which of the following vector diagrams?

Multiple Choice Questions Electronics & Communication MCQ
1

Circuit operation BELOW resonance is represented by which of the following vector diagrams?

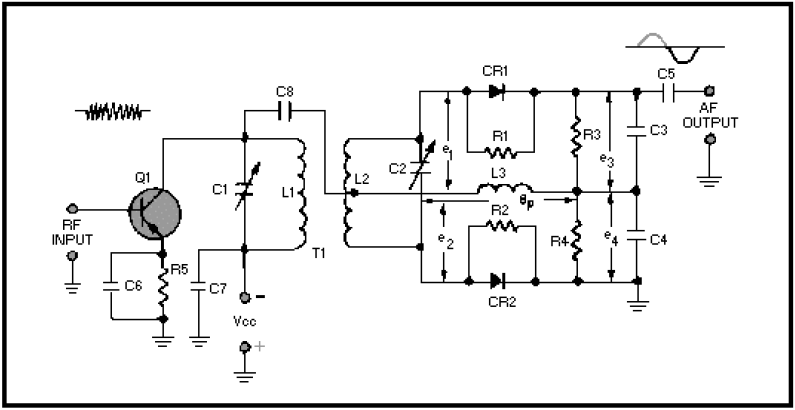

Foster Seeley Discriminator
Foster Seeley Discriminator795×410 13.5 KB

A.

Vector Diagram 1
Vector Diagram 1253×242 1.44 KB

B.

Vector Diagram 2
Vector Diagram 2251×242 1.5 KB

C.

Vector Diagram 3
Vector Diagram 3252×240 1.28 KB

D. None of the above

Show Answer

Answer: B
