In an Emergency Shutdown (ESD) system, an override signal is used to temporarily alter or prevent the normal response of a specified ESD function under controlled conditions.
This is a safety-critical operation and must never be treated as an ordinary control command.

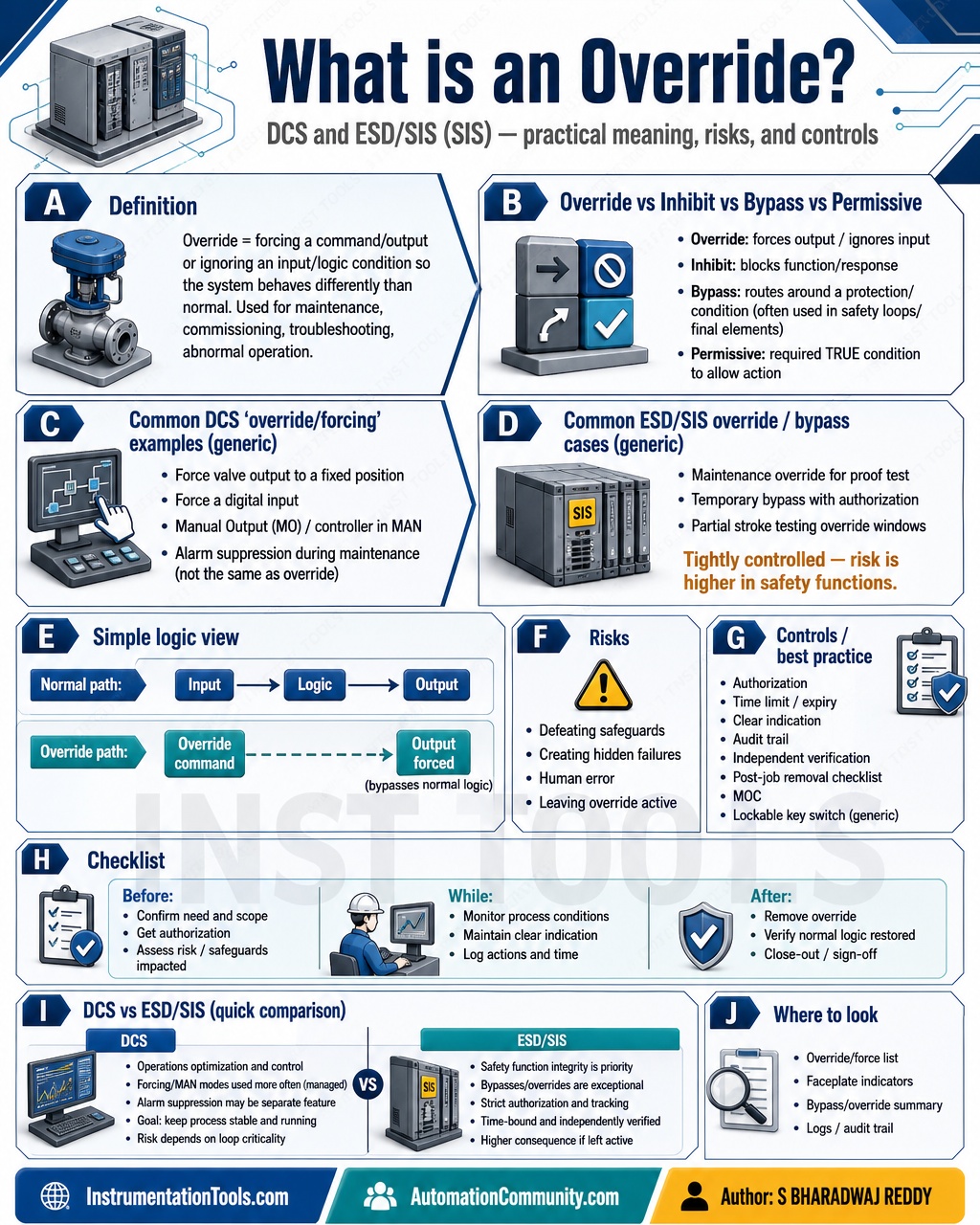

What Is an Override Signal?
An override signal is a controlled signal or command that causes a specified ESD logic function to behave differently from its normal configuration.
For example:
High Pressure Switch → ESD Logic → Shutdown Valve
Normally:
High pressure detected
ESD logic
Shutdown valve closes
If an authorized override is active, the specified trip action may temporarily be prevented or modified, depending on the ESD design.
Why Are Override Signals Used?
Typical reasons include:
Instrument maintenance
Functional testing
Commissioning
Troubleshooting
Temporary operating conditions
For example, a pressure transmitter may need to be removed for maintenance while the process remains operational.
An approved override arrangement may temporarily prevent that particular signal from causing an unwanted shutdown.
Simple Example
Normal ESD operation:
PT High-High → ESD Trip → SDV Close
With an authorized override:
PT High-High → Override Active → Specified Trip Action Prevented
The exact logic depends on the approved Cause & Effect and SIS/ESD philosophy.
Why Are Override Signals Dangerous?
When an override is active:
A protection function may be unavailable
The process risk may increase
A genuine hazardous condition may not produce the expected shutdown
For example:
Actual high pressure occurs
Transmitter sends trip signal
Override remains active
Intended ESD action is prevented
This is why override management is extremely important.
Good Override Practices
An ESD override should normally be:
Authorized
Risk assessed
Clearly indicated
Communicated to operations
Recorded/logged
Controlled for duration
Removed after the activity
Verified after restoration
Where the system supports it, additional controls such as time limits, access restrictions, or automatic removal can reduce the risk of a forgotten override.
Override vs Force vs Bypass
These terms can be confusing because different ESD/SIS platforms use different terminology.
Override:
Temporarily modifies or prevents a specified function/action.
Force:
Forces a selected input/output/state to a defined value.
Bypass:
Temporarily prevents a specified safety function from performing its normal action.
Always refer to the specific ESD vendor documentation and project philosophy to determine exactly what each function does.
Interview Question
Why are override signals used in an ESD system?
Override signals are used to temporarily modify or inhibit a specified ESD action for approved activities such as maintenance, testing, commissioning, or defined operating conditions, while applying appropriate controls to manage the resulting reduction in protection.
Remember
Use only when necessary → Control the risk → Monitor it → Remove it → Verify the ESD is restored.
