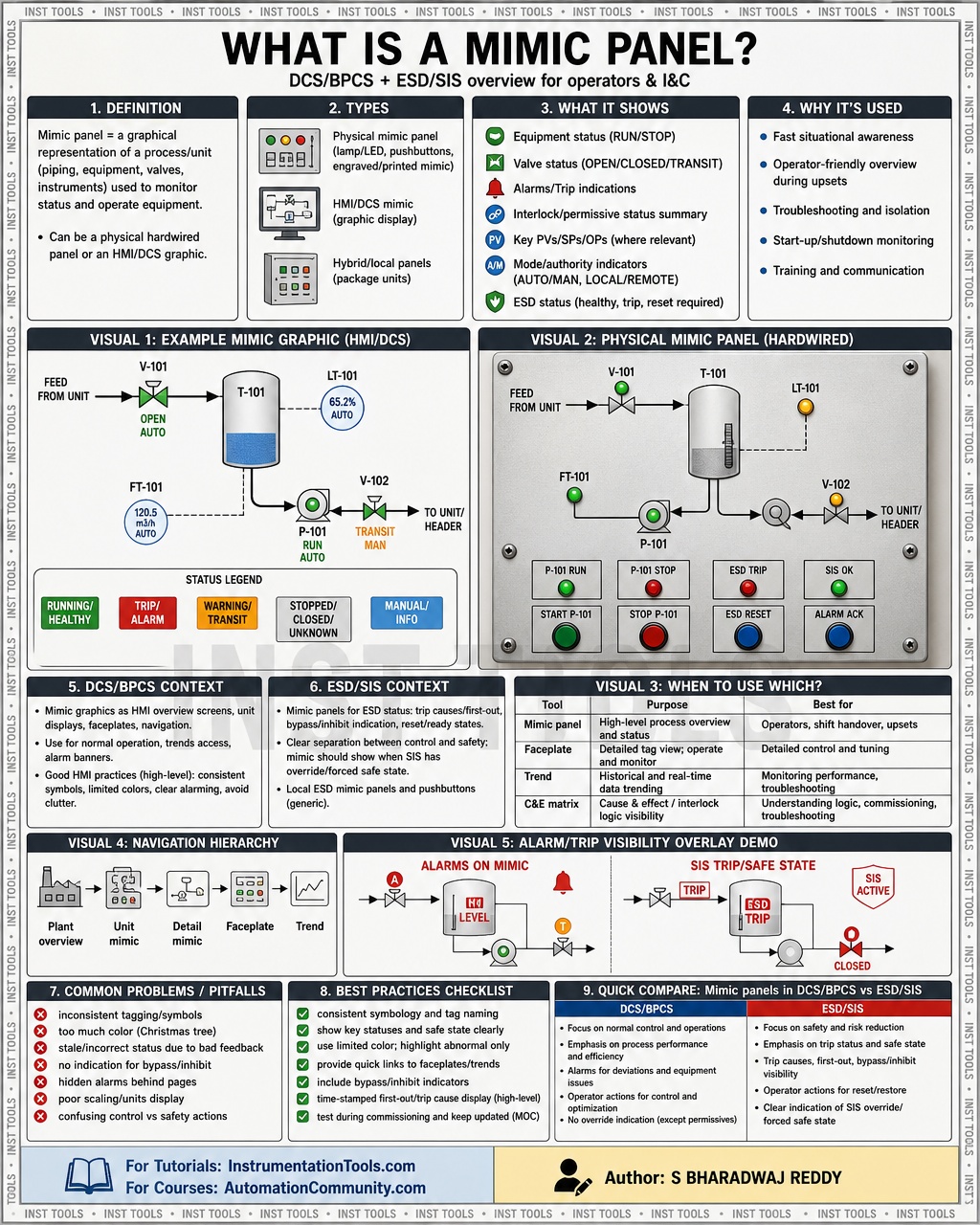

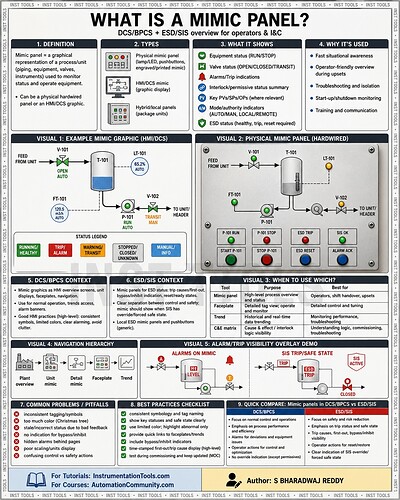

MIMIC PANEL: The Visual Map of Your Process!
Imagine an operator sitting in a control room and needing to understand the entire plant process at a glance.
Instead of reading hundreds of instrument tags, the operator looks at a Mimic Panel.
Process → Equipment → Flow → Status → Alarm
All represented visually on one panel.
What is a Mimic Panel?
A Mimic Panel is a graphical representation of an industrial process or plant layout used to display process equipment, process flow, operating status, and important indications to operators.
It typically uses:
LEDs
Push buttons
Digital displays
Indicator lamps
Symbols
Annunciators
Graphic elements
Equipment status indications
Example
For a pumping system, a mimic panel may show:
Tank → Pump → Valve → Pipeline → Process
The panel can indicate:
Pump Running
Pump Stopped
Pump Fault
Valve Open
Valve Closed
High Tank Level
Low Tank Level
So the operator can understand the overall process condition quickly.
Where Are Mimic Panels Used?
Mimic panels have traditionally been used in:
Process plants
Power plants
Oil & Gas facilities
Water treatment plants
Boiler systems
Railway control systems
Industrial facilities
Modern control rooms often use DCS/SCADA graphical displays instead of large physical mimic panels, but the underlying concept remains important.
Mimic Panel vs DCS Graphic
Mimic Panel:
Physical panel with lamps, indicators, switches, and process representation.
DCS/SCADA Graphic:
Software-based process visualization displayed on an operator workstation.
Both provide operators with a visual overview of the process.
Why Is a Mimic Panel Important?
A well-designed mimic panel helps operators:
Understand process flow
Identify equipment status quickly
Recognize abnormal conditions
Locate faults
Monitor critical equipment
Respond faster during abnormal situations
Think of a Mimic Panel as a “visual map” of the plant.
It doesn’t just show what equipment exists…
It shows the operator what is happening in the process.
