What happens if a PLC program freezes or stops executing?
In safety systems, that can be dangerous…
That’s why Watchdog Timers are critical

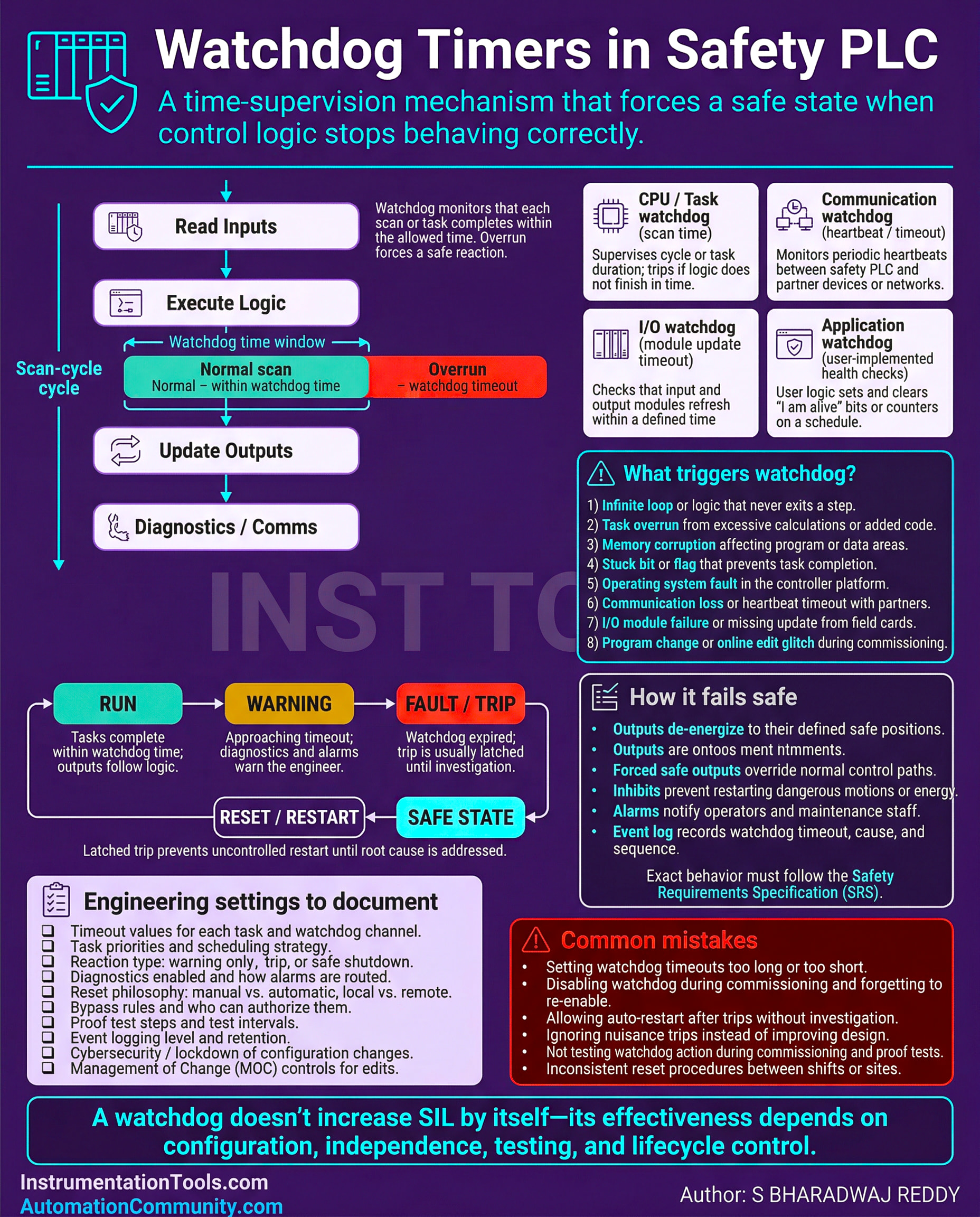

What is a Watchdog Timer?
A monitoring function inside the PLC
Continuously checks whether the CPU/program is running correctly
Detects program hang, scan failure, or abnormal execution
How it works
PLC must complete its scan within a defined time limit
If scan exceeds the limit:
Watchdog Timer activates fault action
What it detects
Infinite loops in program
CPU execution failure
Program freeze/hang
Unexpected scan time increase
What happens after timeout?
Depending on design:
PLC goes to SAFE state
Outputs de-energize
Safety trip activates
Fault alarm generated
Why it is important in Safety PLCs
Prevents unsafe operation during CPU failure
Improves system reliability
Essential for SIL-based systems
Common causes of watchdog faults
Heavy program execution
Infinite loops
Communication overload
Faulty logic design
Key concept
Normal PLC failure may stop process
Safety PLC watchdog ensures system goes SAFE
Simple understanding
Watchdog Timer = PLC health monitor
If the brain stops responding…
the watchdog takes protective action
